1 The AWK Language

2 The Input File countries

$ cat countries
USSR 8649 275 Asia
Canada 3852 25 North America
China 3705 1032 Asia
USA 3615 237 North America
Brazil 3286 134 South America
India 1267 746 Asia
Mexico 762 78 North America
France 211 55 Europe
Japan 144 120 Asia
Germany 96 61 Europe
England 94 56 Europe
  • Fisrt column: Name of a country
  • Second column: Area in thousands of square miles
  • Third column: Population in millions
  • Foruth column: Continent it is in

3 Program Format

  • Pattern-action statements and the statements within an action are usually separated by newlines, but several statements may appear on one line if they are separated by semicolons. A semicolon may be put at the end of any statement.

4 Patterns


4.1 BEGIN and END

  • One common use of a BEGIN action is to change the default way that input lines are split into fields. The field separator is controlled by a built-in variable called FS.
  • By default, fields are separated by blanks and/or tabs; this behavior occurs when FS is set to a blank.
  • Setting FS to any character other than a blank makes that character the field separator.

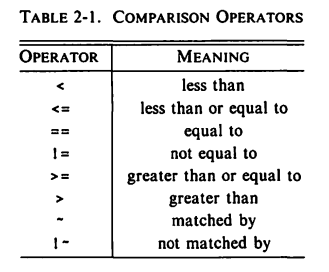

4.2 Expressions as Patterns

  • The string "" which contains no characters, is called the null string.


  • In a relational comparison, if both operands are numeric, a numeric comparison is made; otherwise, any numeric operand is converted to a string, and then the operands are compared as strings.

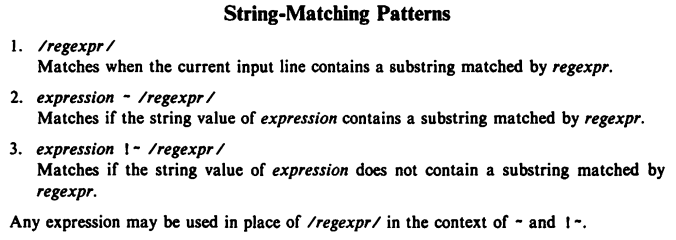

4.3 String-Mattching Patterns


/Asia/
USSR 8649 275 Asia
China 3705 1032 Asia
India 1267 746 Asia
Japan 144 120 Asia
$4 ~ /Asia/
USSR 8649 275 Asia
China 3705 1032 Asia
India 1267 746 Asia
Japan 144 120 Asia
$4 !~ /Asia/
Canada 3852 25 North America
USA 3615 237 North America
Brazil 3286 134 South America
Mexico 762 78 North America
France 211 55 Europe
Germany 96 61 Europe
England 94 56 Europe

Note that /Asia/ is a shorthand for $0 ~ /Asia/

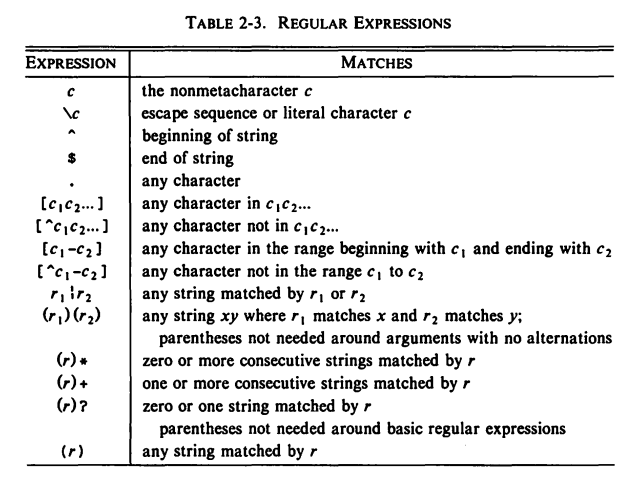

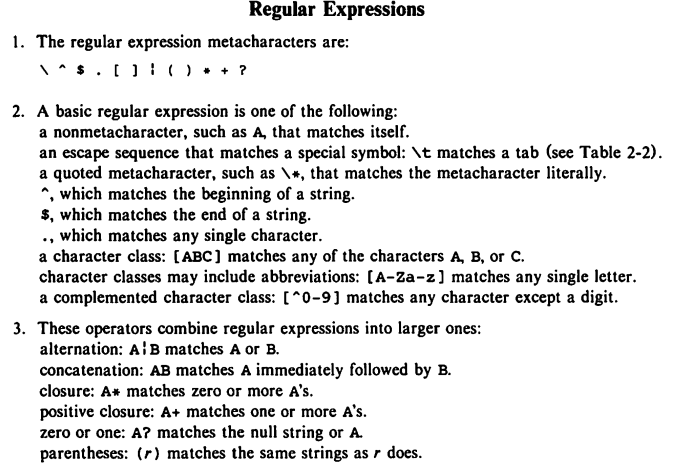

4.4 Regular Expression

  • A regular expression is a notation for specifying and matching strings.



4.5 Compound Patters

$4 == "Asia" || $4 == "Europe"
USSR 8649 275 Asia
China 3705 1032 Asia
India 1267 746 Asia
France 211 55 Europe
Japan 144 120 Asia
Germany 96 61 Europe
England 94 56 Europe

4.6 Range patterns

  • A range pattern consists of two patterns separated by a comma, as in
pat_1, pat_2
/Europe/, /Asia/
France 211 55 Europe
Japan 144 120 Asia
Germany 96 61 Europe
England 94 56 Europe
  • FNR: is the line number just read from the current input file. It's another built in variable.
  • FILENAME: Builtin variable representing the filename.
FNR == 1, FNR == 5 { print FILENAME ": " $0 }
countries: USSR 8649 275 Asia
countries: Canada 3852 25 North America
countries: China 3705 1032 Asia
countries: USA 3615 237 North America
countries: Brazil 3286 134 South America

In the above output it prints from line number 1 to 5.

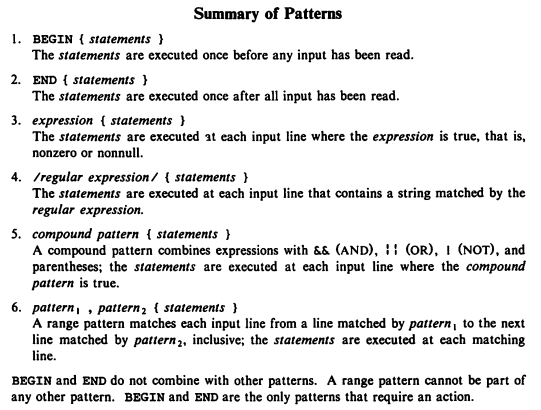

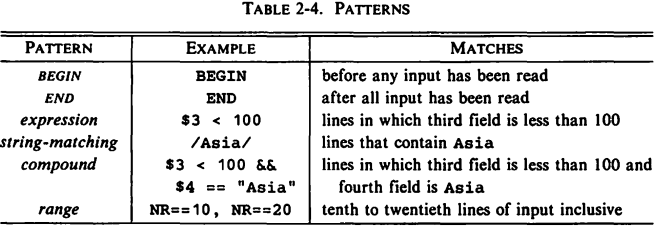

4.7 Summary of Patterns


5 Actions



  • Total population of Asian countries
$4 == "Asia" { pop = pop + $3; n = n + 1}
END          { print "Total population of the", n,
                     "Asian countries is", pop, "million."
             }
Total population of the 4 Asian countries is 2173 million.
  • Find largest population:
$3 > maxpop { maxpop = $3; country = $1 }
END         { print "country with larget population:", country, maxpop }
country with larget population: China 1032


5.1 Strings as Regular Expressions

BEGIN { digits = "^[0-9]+$"}
$2 ~ digits
USSR 8649 275 Asia
Canada 3852 25 North America
China 3705 1032 Asia
USA 3615 237 North America
Brazil 3286 134 South America
India 1267 746 Asia
Mexico 762 78 North America
France 211 55 Europe
Japan 144 120 Asia
Germany 96 61 Europe
England 94 56 Europe

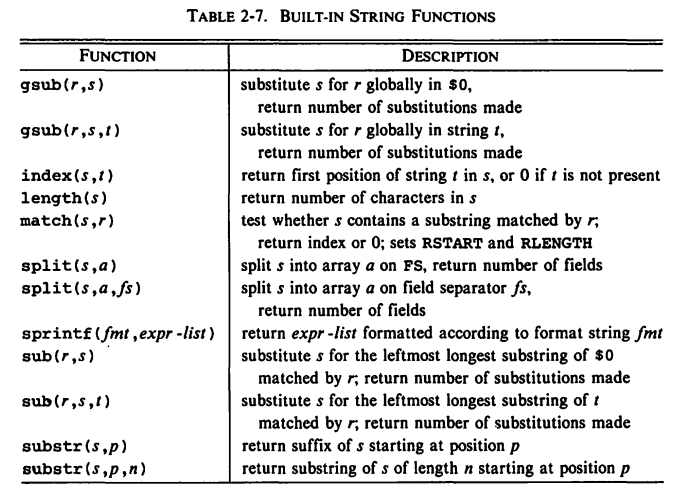

5.2 Built-In String Functions


{ gsub(/USA/, "United States"); print}
USSR 8649 275 Asia
Canada 3852 25 North America
China 3705 1032 Asia
United States 3615 237 North America
Brazil 3286 134 South America
India 1267 746 Asia
Mexico 762 78 North America
France 211 55 Europe
Japan 144 120 Asia
Germany 96 61 Europe
England 94 56 Europe
{ gsub(/Asia/, "Asiana", $4); print $0}
USSR 8649 275 Asiana
Canada 3852 25 North America
China 3705 1032 Asiana
USA 3615 237 North America
Brazil 3286 134 South America
India 1267 746 Asiana
Mexico 762 78 North America
France 211 55 Europe
Japan 144 120 Asiana
Germany 96 61 Europe
England 94 56 Europe
  • The function substr(s,p) returns the fuffix of s that begins at position p. If substr(s,p,n) is used, only the first n characters of the suffix are returned.
{ $1 = substr($1, 1, 3); print $0}
USS 8649 275 Asia
Can 3852 25 North America
Chi 3705 1032 Asia
USA 3615 237 North America
Bra 3286 134 South America
Ind 1267 746 Asia
Mex 762 78 North America
Fra 211 55 Europe
Jap 144 120 Asia
Ger 96 61 Europe
Eng 94 56 Europe
    { s = s substr($1, 1, 3) " "}
END { print s }
USS Can Chi USA Bra Ind Mex Fra Jap Ger Eng

5.3 Number or String?

  • The value of an expression may be automatically converted from a number to a string or vice versa, depending on what operation is applied to it.
  • In an arithmetic expression like pop + $3, the operands pop and $3 must be numeric, so their values will be forced or coerced to numbers if they are not already.
  • In a string expression like $1 $2 the operands $1 and $2 must be strings to be concatenated, so they will be coerced to strings if necessary.
  • There are two idioms for coercing an expression of one type to the other:
    • number "" concatenate a null string to number to coerce it to a string
    • string + 0 add zero to string to coerce it to a number

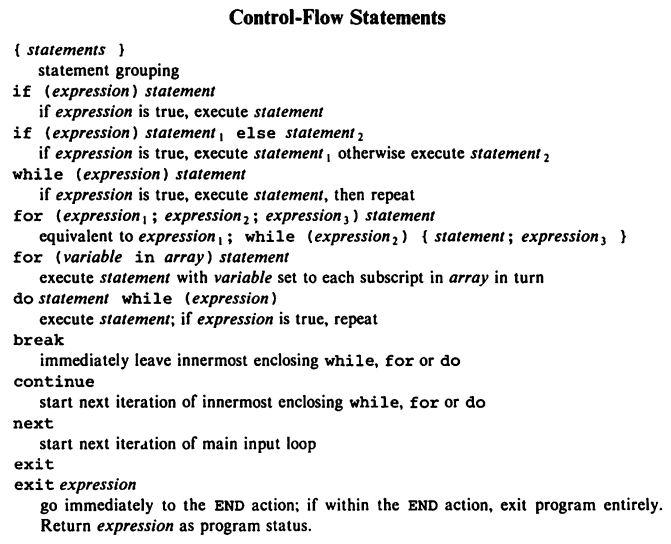

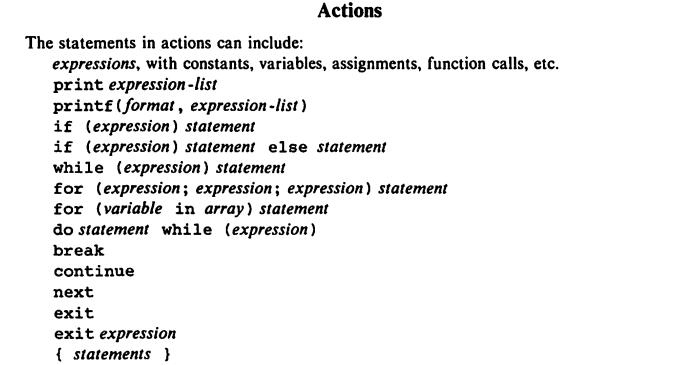

5.4 Control Flow Statements


5.5 Empty Statement

  • Semicolon denotes the empty statement.

5.6 Arrays

  • Awk provides one-dimensional arrays for storing strings and numbrs.
  • Printing file in reverse:
    { x[NR] = $0 }
END { for(i=NR;i > 0;i--) print x[i]}
England 94 56 Europe
Germany 96 61 Europe
Japan 144 120 Asia
France 211 55 Europe
Mexico 762 78 North America
India 1267 746 Asia
Brazil 3286 134 South America
USA 3615 237 North America
China 3705 1032 Asia
Canada 3852 25 North America
USSR 8649 275 Asia
  • Finding asian and european population:
/Asia/   { pop["Asia"] += $3 }
/Europe/ { pop["Europe"] += $3 }
END      { print "Asian population is", pop["Asia"], "million."
           print "European population is", pop["Europe"], "million."
         }
Asian population is 2173 million.
European population is 172 million.

5.7 Delete startement

  • An array element may be deleted with delete array[subscript]

6 User-Defined Functions

function name(parameter-list) {
  statements
}
  • Example code:
{ print max($2,$3) }

function max(a, b) {
    return a > b ? a : b
}
8649
3852
3705
3615
3286
1267
762
211
144
96
94

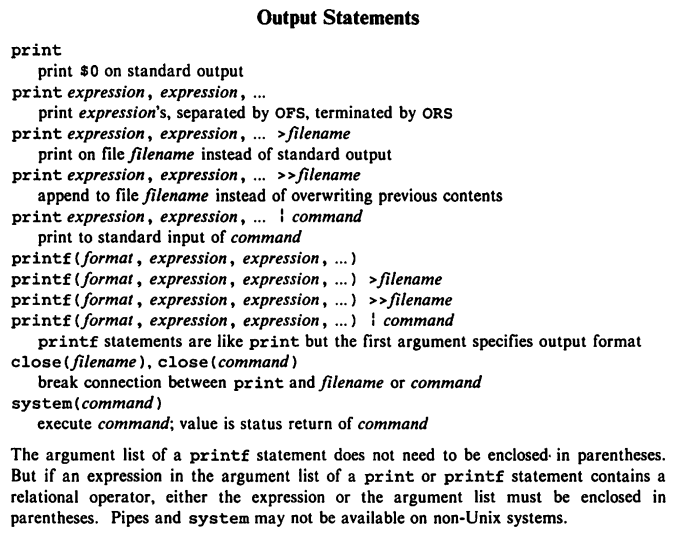

7 Output

  • print and printf statements generate output.


7.1 Output Separators

  • OFS: Built-in variable representing output field separator.
  • ORS: Built-in variable representing output record separator.
BEGIN { OFS = ":"; ORS = "|"}
      { print $1, $2 }
USSR:8649|Canada:3852|China:3705|USA:3615|Brazil:3286|India:1267|Mexico:762|France:211|Japan:144|Germany:96|England:94|

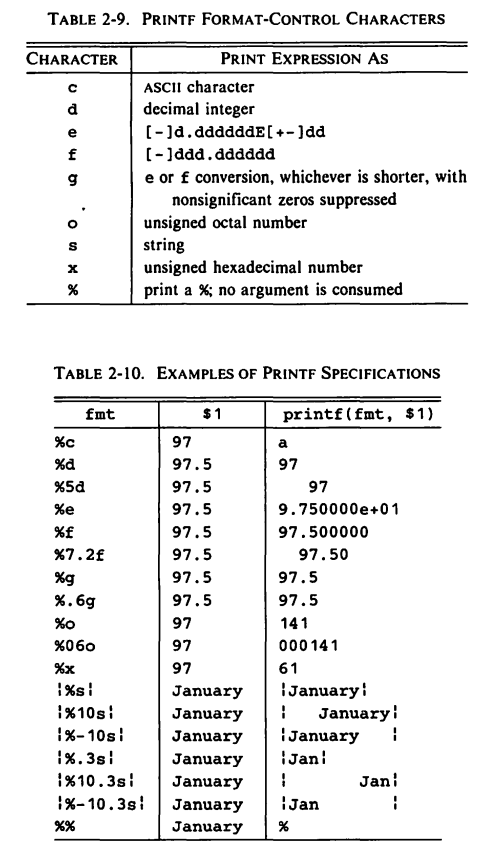

7.2 printf


7.3 Output into Files

  • The redirection operators > and >> are used to put outputs into files instead of the standard output.
  • Example program to write to two files based on smaller and big population:
$3 > 100 { print $1, $3 >"bigpop"}
$3 <= 100 { print $1, $3 >"smallpop"}
$ echo bigpop
$ bat bigpop
$ echo "---\n smallpop"
$ bat smallpop
bigpop
USSR 275
China 1032
USA 237
Brazil 134
India 746
Japan 120
---
smallpop
Canada 25
Mexico 78
France 55
Germany 61
England 56
  • If >> is used, the file is not cleared; output is appended after the original contents.

7.4 Output into Pipes

  • Let's sort continents by population:
    { pop[$4] += $3 }
END { for (c in pop)
        printf("%-7s %d\n", c, pop[c]) | "sort -r -n -k2,2"
    }
Asia    2173
North   340
Europe  172
South   134

7.5 Closing Files and pipes

  • The statement close(expr) closes a file or pipe denoted by expr; the string value of expr must be the same as the string used to create the file or pipe in the first place.
  • Thus, close("sort -r -n k2,2") closes the sort pipe opened above.
  • close is necessary if you intend to write a file, then read it later in the same program.

8 Input

8.1 Input Separators

  • The default built-in variable FS is " " a single blank. When FS has this value, input fields are separated by blanks and/or tabs. Note that the leading blanks and tabs are discarded. When FS has other value, the leading blanks and tabs are not discarded.

8.2 Multiline Records

  • By default records are separated by newlines. The terms "line" and "record" are normally synonymous.
  • RS: Built in record separator variable. Default value: "\n"

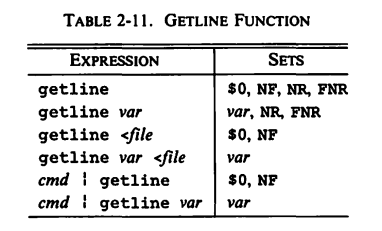

8.3 The getline Function

  • Can be used to read input from the current input or from a file or pipe.


8.4 Command Line Arguments

$ awk -f progfile a v=1 b
  • ARGC has the value 4.
  • ARGV[1] contains a
  • ARGV[2] contains v=1
  • ARGV[3] contains b

9 Interaction with Other Programs

9.1 The system Function

  • The built-in function system(expression) executes the command given by the string value of expression. The value returned by system is the status returned by the command executed.
/Asia/ { system("echo " $0)}
USSR 8649 275 Asia
China 3705 1032 Asia
India 1267 746 Asia
Japan 144 120 Asia

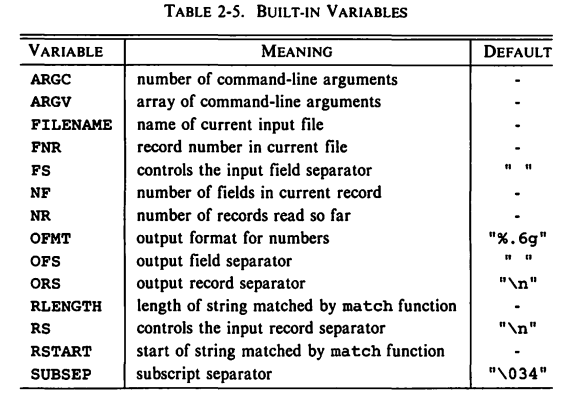

10 Built in variables
